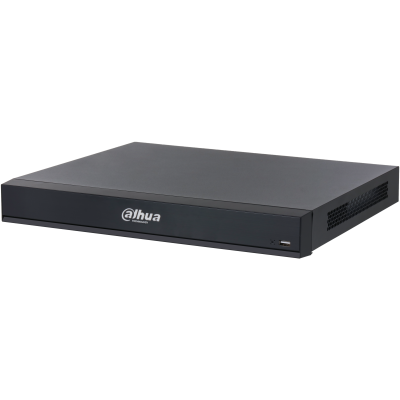

NVR5216-16P-XI

16CH 1U 16POE 2HDDs WizMind Network Video Recorder

> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.

> Max. decoding capability: 32 × 1080p@30 fps

> Max. 512/512/512 Mbps incoming/recording/outgoing bandwidth.

> Supports IP cameras with a resolution up to 32 MP.

> Supports AcuPick with up to 16 channels.

> AI by Recorder supports 8-channel face detection and recognition, up to 20 face databases and 200,000 face images; 8-channel metadata; 16-channel perimeter protection; 16-channel SMD Plus.

> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.

> Supports N+M cluster, ISCSI.

> Supports EPTZ, and one-click arming and disarming.

Category:

System

Main Processor



Industrial-grade processor

Operating System



Embedded Linux

Operating Interface



Web, Local GUI

AI

AI by Recorder



Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD

AI by Camera



Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis, crowd distribution; people counting; ANPR; heat map; PPE detection

AcuPick AI by Camera + Recorder



Max. 16-channel, 1 combined event per channel

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)



16 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)



All channels (32 targets/s)

Face Detection

Face Attributes



6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)



8 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)



16 channels

Face Recognition

Face Database Capacity



Up to 20 face databases with 2,000,00 images, with a total capacity of 44 G.

Face Recognition Performance of AI by Recorder (Number of Channels)



16-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s

8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)



16 channels

SMD Plus

SMD Plus by Recorder



16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera



All channels (64 targets/s)

Video Metadata

Metadata Performance of AI by Recorder (Number of Channels)



8 channels, 23 attributes extraction.

Metadata Performance of AI by Camera (Number of Channels)



16 channels

People Attributes



9 human body attributes

Motor Vehicle Attributes



9 attributes

Non-motor Vehicle Attributes



4 attributes

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)



All channels (32 targets/s)

License Plate Database Capacity



1. Create up to 20,000 plate numbers.

2. Blocklist and allowlist

Audio and Video

Access Channel



16 channels

Network Bandwidth



AI disabled: 512 Mbps incoming, 512 Mbps recording and 512 Mbps outgoing

AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Resolution



32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF

Decoding Capability



AI disabled: 2-channel 32 MP@30fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps;8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps

AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps;6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 16-channel 1080p@30 fps

Video Output



1 VGA, 1 HDMI

VGA:1920 × 1080, 1280 × 1024, 1280 × 720

HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

Heterogeneous video source output for HDMI and VGA

Multi-screen Display



Main screen: 1/4/8/9/16

Sub screen: 1/4/8/9/16

Third-party Camera Access



ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Compression Standard

Video Compression



Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression



G.711a; G.711u; PCM; G726

Network

Network Protocol



HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI

Mobile Phone Access



iOS; Android

Interoperability



ONVIF 23.06(Profile T; Profile S; Profile G); CGI; SDK

Browser



Chrome; Firefox; IE

Recording Playback

Multi-channel Playback



Up to 16 channels

Record Mode



General; motion detection; intelligent; alarm; POS

Backup Method



USB device and network

Playback Mode



Instant playback; general playback; event playback; tag playback; smart playback

Storage

Disk Group



Yes

Alarm

General Alarm



Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm

Anomaly Alarm



Error (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection

Intelligent Alarm



Face detection; face recognition; video metadata (human, motor vehicle, and non-motor vehicle); perimeter protection; license plate comparison

Alarm Linkage



Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email

Port

Audio Input



1-channel RCA

Audio Output



1-channel RCA

Alarm Input



4 channels

Alarm Output



2 channels

Disk Interface



2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.

RS-232



1

RS-485



1

USB



2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI



1

VGA



1

Network Port



1(10/100/1000 Mbps Ethernet port, RJ-45)

PoE Port

16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE

General

Power Supply

100–240 VAC, 50/60Hz

Power Consumption

<10 W (without HDD)

Total output power of PoE is 200 W, the maximum output power of a single port is 25.5 W

Net Weight

2.66 kg (5.86 lb)

Gross Weight

3.82 kg (8.42 lb)

Product Dimensions

375.0 mm × 327.6 mm x 53.0 mm (14.76″ × 12.90″ × 2.09″) (W ×D × H)

Packaging Dimensions

449.0 mm × 421.0 mm × 170.0 mm (17.68″ × 16.57″ × 6.69″)(W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Installation

Rack or desktop

Certifications

Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
